Learning and Evolutionary Dynamics

The replicator dynamics and Moran process are just two of many ways a population might update its strategies over time. This chapter examines a broader family of learning and evolutionary dynamics, exploring how the choice of update rule shapes long-run behaviour.

Ideas spreading through a population as individuals copy them. — Figure 1:Ideas spread through a population as individuals copy what appears to be working. A number of population update mechanisms exist that model this spread in different ways.

Motivating Example: Does the Update Rule Matter?¶

Return to the graduate student reading group from Motivating Example: Everyone’s citing the preprint. The same coordination game governs citations, textbook ( $T$ ) versus preprint ( $P$ ), but now consider three plausible ways students might update their habits:

Imitation: a student notices a peer doing well and copies them.
Best-response: a student calculates which citation would be optimal given current group behaviour and switches if warranted.
Generational turnover: new students join each cohort and tend to adopt whichever citation style is more prevalent.

The payoff matrix is the same in all three cases. Yet these mechanisms can produce different trajectories, different fixation probabilities, and different long-run distributions. This raises a fundamental question: does the update rule matter?

The answer is yes, particularly in small populations, at high selection intensity, or when the game has multiple equilibria. This chapter introduces three families of update rules (imitation, introspection, and best-response) alongside the Wright–Fisher process, and shows how they relate to each other and to the replicator dynamics and Moran process studied in previous chapters.

Theory¶

Definition: Imitation Dynamics¶

In imitation dynamics a population of $N$ individuals updates strategy by pairwise comparison. At each step:

Two individuals $i$ and $j$ are selected uniformly at random.
Individual $i$ switches to $j$ ’s strategy with the Fermi probability:

P(i \to j) = \frac{1}{1 + e^{-\beta(\pi_j - \pi_i)}}

(1)

where $\pi_i$ and $\pi_j$ are their current payoffs and $\beta \geq 0$ is the selection intensity.

The parameter $\beta$ controls how strongly payoff differences drive imitation:

$\beta = 0$ : strategies are copied uniformly at random (neutral drift).
$\beta \to \infty$ : copying is deterministic; the higher-payoff strategy is always adopted.

Example: Imitation in the Citation Game¶

For the citation coordination game with $\beta = 1$ , suppose the group has $N=4$ students with 2 citing the textbook and 2 citing the preprint. Each student’s fitness is:

\pi_T = \frac{1 \cdot 3 + 2 \cdot 0}{3} = 1 \qquad \pi_P = \frac{2 \cdot 1 + 1 \cdot 2}{3} = \frac{4}{3}

(2)

If student $i$ cites $T$ and is paired with student $j$ citing $P$ , the probability that $i$ switches to $P$ is:

\begin{align*} P(i \to j) &= \frac{1}{1 + e^{-1 \cdot (4/3 - 1)}}\\ &= \frac{1}{1 + e^{-1/3}} \approx 0.582 \end{align*}

(3)

Compare this to the Moran process, where the probability of the preprint spreading would instead depend on relative fitness proportions. Both models favour $P$ in this state, but at different rates and with different stochastic properties.

Definition: Introspection Dynamics¶

In introspection dynamics individuals update by counterfactual reasoning rather than by observing others. At each step:

One individual $i$ is selected uniformly at random.
Individual $i$ computes the payoff $\pi_j$ they would receive if they switched to each alternative strategy $j$ , holding all other individuals’ strategies fixed.
They switch to strategy $j$ with the Fermi probability:

P(i \to j) = \frac{1}{1 + e^{-\beta(\pi_j - \pi_i)}}

(4)

The key distinction from imitation is the information used: imitation requires observing another individual’s payoff; introspection requires only computing a hypothetical payoff from the current population composition.

Example: Introspection vs Imitation¶

In the citation game at state $(v_T, v_P) = (2, 2)$ , a textbook-citing student using introspection computes:

Current payoff: $\pi_T = 1$ (playing $T$ against 1 $T$ -player and 2 $P$ -players among the remaining 3 partners).
Hypothetical payoff if switching: $\pi_P = (2 \cdot 1 + 1 \cdot 2)/3 = 4/3$ (playing $P$ against the 2 $P$ -players and 1 $T$ -player).

The switching probability is the same as in the imitation example above, $\approx 0.582$ . In symmetric games with homogeneous populations the two dynamics coincide; differences emerge in asymmetric games or structured populations where who you observe versus who you are matters.

Definition: Best-Response Dynamics¶

Best-response dynamics is the deterministic limit of introspection dynamics as $\beta \to \infty$ . At each step an individual switches to whichever strategy has the highest expected payoff against the current population:

P(i \to j) = \begin{cases} 1 & \text{if } \pi_j > \pi_i,\\ 0 & \text{if } \pi_j < \pi_i,\\ 1/2 & \text{if } \pi_j = \pi_i. \end{cases}

(5)

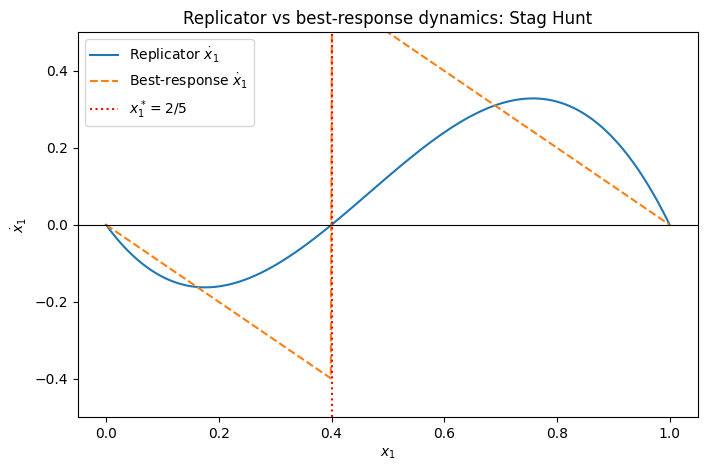

In the infinite-population continuous-time limit, the population share $x_i$ of strategy $i$ evolves as Gilboa & Matsui, 1991:

\dot{x}_i = \mathbf{1}[\pi_i = \max_k \pi_k] - x_i

(6)

Best-response dynamics is used in economic models where agents are fully rational and have perfect information about population composition. It always converges to a Nash equilibrium or cycles around one, but unlike replicator dynamics it can reach strict equilibria from any initial condition.

Definition: Wright–Fisher Process¶

The Wright–Fisher process models evolution in a population with non-overlapping generations of fixed size $N$ . Each generation is formed by sampling $N$ offspring independently from the previous generation, where strategy $i$ is chosen with probability proportional to its fitness:

p_i = \frac{f_i}{\sum_k f_k}

(7)

Optionally, each offspring mutates to a uniformly chosen strategy with probability $\mu$ .

Unlike the Moran process, which replaces one individual at a time, the Wright–Fisher process replaces the entire population simultaneously. This makes it the natural model for organisms with discrete, synchronised generations (annual plants, insects, some microbes). The biological origins of this process, and of the Moran process, are discussed in The Biological Origins of Evolutionary Game Theory.

Example: One Generation of the Wright–Fisher Process¶

For the citation game at state $(v_T, v_P) = (3, 1)$ with $N=4$ and $\beta = 1$ (using exponential fitness $f_i = e^{\beta \pi_i}$ ):

f_T = e^{6/3} = e^2 \approx 7.39 \qquad f_P = e^{3/3} = e^1 \approx 2.72

(8)

The probability that a randomly sampled offspring cites $T$ is:

p_T = \frac{7.39}{7.39 + 2.72} \approx 0.731

(9)

The next generation $(v_T', v_P')$ follows a Binomial $(4,\ 0.731)$ distribution, so for example $P(v_T'=4) \approx 0.731^4 \approx 0.286$ .

Theorem: Mean-Field Limit¶

For all four dynamics (imitation, introspection, best-response, and Wright–Fisher) in the limit of large population size $N \to \infty$ and weak selection $\beta \to 0$ (with $\beta N$ held fixed), the expected change in strategy frequencies converges to the replicator equation Traulsen et al., 2005Hofbauer & Sigmund, 1998:

\dot{x}_i = x_i(\pi_i - \bar{\pi}), \qquad \bar{\pi} = \sum_k x_k \pi_k

(10)

This result explains why replicator dynamics occupies a central place in evolutionary game theory: it is the universal mean-field limit shared by all these distinct microscopic update rules. Differences between dynamics matter most in small populations or at high selection intensity.

Exercises¶

Programming¶

The ludics library represents an evolutionary game as a finite-population Markov chain and computes fixation probabilities and stationary distributions exactly. It implements the Moran process, Fermi imitation, and introspection dynamics directly, and its transition-matrix builder accepts a custom update rule, which lets us add the Wright–Fisher process as well.

Setting up the citation game¶

We work with the citation coordination game on a population of $N = 4$ students. A state records each individual’s strategy (0 for textbook, 1 for preprint), and the fitness of an individual is its average payoff against the rest of the population.

import numpy as np
import ludics

payoff_matrix = np.array([[3, 0], [1, 2]])  # citation game: T = 0, P = 1


def citation_fitness(state, payoff_matrix, **kwargs):
    """Average payoff of each individual against all others."""
    number_of_individuals = len(state)
    return np.array([
        np.mean([
            payoff_matrix[state[individual], state[other]]
            for other in range(number_of_individuals)
            if other != individual
        ])
        for individual in range(number_of_individuals)
    ])


state_space = ludics.get_state_space(N=4, k=2)

/home/runner/work/gtb/gtb/.venv/lib/python3.14/site-packages/ludics/main.py:8: SyntaxWarning: "\i" is an invalid escape sequence. Such sequences will not work in the future. Did you mean "\\i"? A raw string is also an option.
  We have a state v \in S = [$v_1$, .... $v_n$] as the set of types of individuals in the population, so that $v_i$ is the type of individual i. |S| = $k^N$
/home/runner/work/gtb/gtb/.venv/lib/python3.14/site-packages/ludics/main.py:52: SyntaxWarning: "\s" is an invalid escape sequence. Such sequences will not work in the future. Did you mean "\\s"? A raw string is also an option.
  $\frac{\sum_{v_i = u_{i*}}{f(v_i)}}{\sum_{v_i}f(v_i)}$
/home/runner/work/gtb/gtb/.venv/lib/python3.14/site-packages/ludics/main.py:85: SyntaxWarning: "\p" is an invalid escape sequence. Such sequences will not work in the future. Did you mean "\\p"? A raw string is also an option.
  returns $\phi(a_i, a_j) = \frac{1}{1 + \exp({\frac{f(a_{i}) - f(a_{j})
/home/runner/work/gtb/gtb/.venv/lib/python3.14/site-packages/ludics/main.py:121: SyntaxWarning: "\s" is an invalid escape sequence. Such sequences will not work in the future. Did you mean "\\s"? A raw string is also an option.
  $\sum_{a_j=b_{i^*}}^N\frac{1}{N(N-1)}\phi(f_i(a) - f(a_j))$
/home/runner/work/gtb/gtb/.venv/lib/python3.14/site-packages/ludics/main.py:177: SyntaxWarning: "\s" is an invalid escape sequence. Such sequences will not work in the future. Did you mean "\\s"? A raw string is also an option.
  $\frac{1}{N}\frac{\sum_{a_{j} = b_{I(\textbf{a}, \textbf{b})}}f_j(\textbf{a})}{\sum_{k}f_k(\textbf{a})}\phi(\Delta(f_{I(\textbf{a,b})}))$
/home/runner/work/gtb/gtb/.venv/lib/python3.14/site-packages/ludics/main.py:234: SyntaxWarning: "\p" is an invalid escape sequence. Such sequences will not work in the future. Did you mean "\\p"? A raw string is also an option.
  $\frac{1}{N(m_j - 1)}\phi(f_i(a) - f_i(b))$
/home/runner/work/gtb/gtb/.venv/lib/python3.14/site-packages/ludics/main.py:300: SyntaxWarning: "\p" is an invalid escape sequence. Such sequences will not work in the future. Did you mean "\\p"? A raw string is also an option.
  will choose the higher fitness strategy in $\phi$
/home/runner/work/gtb/gtb/.venv/lib/python3.14/site-packages/ludics/main.py:784: SyntaxWarning: "\m" is an invalid escape sequence. Such sequences will not work in the future. Did you mean "\\m"? A raw string is also an option.
  strategies) array where $\mu_{ik}$ gives the probability of player $i$

Building each dynamic as a Markov chain¶

Moran, Fermi imitation, and introspection are built in. Wright–Fisher is not, but because each of the $N$ offspring of a generation is drawn independently in proportion to parental fitness, its transition probability factorises as a product over offspring, and generate_transition_matrix accepts it as a custom rule.

def wright_fisher_transition_probability(
    source, target, fitness_function, selection_intensity, **kwargs
):
    """Wright–Fisher: each offspring is sampled independently, in proportion
    to parental fitness (non-overlapping generations)."""
    fitness = 1 + selection_intensity * fitness_function(source, **kwargs)
    total_fitness = fitness.sum()
    probability = 1.0
    for offspring_type in target:
        probability *= fitness[source == offspring_type].sum() / total_fitness
    return probability


moran = ludics.generate_transition_matrix(
    state_space, citation_fitness, ludics.compute_moran_transition_probability,
    selection_intensity=1.0, payoff_matrix=payoff_matrix,
)
fermi = ludics.generate_transition_matrix(
    state_space, citation_fitness, ludics.compute_fermi_transition_probability,
    choice_intensity=1.0, payoff_matrix=payoff_matrix,
)
wright_fisher = ludics.generate_transition_matrix(
    state_space, citation_fitness, wright_fisher_transition_probability,
    selection_intensity=1.0, payoff_matrix=payoff_matrix,
)
introspection = ludics.generate_transition_matrix(
    state_space, citation_fitness,
    ludics.compute_introspection_transition_probability,
    choice_intensity=1.0, number_of_strategies=2, payoff_matrix=payoff_matrix,
)

Does the update rule matter?¶

The three absorbing dynamics, Moran, Fermi imitation, and Wright–Fisher, each end in fixation: every individual ends up citing either the textbook or the preprint. We read off the probability that a single preprint adopter eventually takes over, and it differs from one rule to the next, which is the central message of this chapter.

single_adopter = next(i for i, s in enumerate(state_space) if s.sum() == 1)
all_preprint = next(i for i, s in enumerate(state_space) if s.sum() == 4)

for name, matrix in [("Moran", moran), ("Fermi imitation", fermi),
                     ("Wright-Fisher", wright_fisher)]:
    absorption = ludics.get_absorption_probabilities(matrix, state_space)
    pairs = np.array(absorption[single_adopter]).reshape(-1, 2)
    fixation = next(p for index, p in pairs if int(index) == all_preprint)
    print(f"{name}: fixation probability of one preprint adopter = {fixation:.4f}")

Moran: fixation probability of one preprint adopter = 0.2342
Fermi imitation: fixation probability of one preprint adopter = 0.1656
Wright-Fisher: fixation probability of one preprint adopter = 0.1729

Introspection dynamics, by contrast, is ergodic: it never fixes but visits every state indefinitely, so the natural summary is its stationary distribution.

stationary = ludics.compute_steady_state(introspection)
print(
    "Introspection: stationary probability of all-preprint =",
    round(float(stationary[all_preprint]), 4),
)

Introspection: stationary probability of all-preprint = 0.2857

Note

The ludics cells above build the entire Markov chain and extract exact fixation probabilities and stationary distributions, whereas the exercises and their solutions work directly with the per-step transition probabilities by hand. The two approaches describe the same dynamics but adopt different conventions, so their numbers need not coincide exactly. In particular, ludics parametrises the Fermi and introspection rules by a choice_intensity (an inverse temperature, roughly $1/\beta$ ) and the Moran process by a fitness of the form $1 + \delta\,\pi$ , while the worked examples use $\beta$ directly, proportional fitness $f = \pi$ for the Moran process, and exponential fitness $f = e^{\beta \pi}$ for the Wright–Fisher process. Each is a standard choice, and the qualitative comparison between update rules is unaffected.

Notable Research¶

The Fermi imitation rule used in this chapter was proposed and analysed by Traulsen et al., 2006, who showed that pairwise comparison dynamics reduces to the replicator equation in the large-population, weak-selection limit. This paper is foundational to the study of evolutionary dynamics in finite populations under social learning.

Introspection dynamics is a more recent addition to this family, introduced by Couto et al., 2022. Unlike imitation, introspection does not require observing a specific partner’s outcome, only reasoning about what would happen under an alternative strategy. This distinction becomes particularly important in asymmetric games and has applications to human behavioural experiments where direct comparison is not always possible.

Best-response dynamics has roots in the economic learning literature, tracing back to Gilboa & Matsui, 1991. Its relationship to replicator dynamics and its convergence properties in potential games are thoroughly analysed in Hofbauer & Sigmund, 1998.

The Wright–Fisher process predates the Moran process in the biological literature, originating in the foundational work of Fisher Fisher, 1930 and Wright Wright, 1931 on genetic drift. The key result that both processes converge to replicator dynamics in the large-population limit was established in Traulsen et al., 2005.

Conclusion¶

This chapter surveyed four update rules (imitation, introspection, best-response, and Wright–Fisher) as alternatives to the Moran process and replicator dynamics covered in preceding chapters. Together they form a landscape of evolutionary and learning models that share a common mean-field limit (the replicator equation) but differ in their finite-population and high-selection behaviour.

The choice of update rule is not merely a mathematical convention. It reflects an assumption about how real agents (biological organisms, humans, firms) actually change their behaviour: by copying successful peers, by rational introspection, by best-responding to the current environment, or through generational turnover. Understanding when these assumptions differ in their predictions is essential for applying evolutionary game theory to empirical settings.

Table 1 summarises the key concepts.

Table 1:Summary of learning and evolutionary dynamics

Dynamic	Update mechanism	Finite population?	Mean-field limit
Replicator	Continuous frequency change proportional to relative payoff	No (infinite)	n/a (is the limit)
Moran	Birth proportional to fitness; death uniform	Yes	Replicator
Imitation	Fermi pairwise copying with selection intensity $\beta$	Yes	Replicator
Introspection	Counterfactual switching via Fermi rule	Yes	Replicator
Best-response	Deterministic switch to highest-payoff strategy	No (or $\beta\to\infty$ )	Replicator
Wright–Fisher	Multinomial sampling proportional to fitness per generation	Yes	Replicator

Solutions¶

Solution to Exercise 1 #

With $N=4$ , 2 cooperators (C) and 2 defectors (D), each individual interacts with all $N-1 = 3$ others.
For a cooperator, the opponents are 1 cooperator and 2 defectors:
$\pi_C = \frac{1 \cdot R + 2 \cdot S}{3} = \frac{1 \cdot 3 + 2 \cdot 0}{3} = 1$
(13)
For a defector, the opponents are 2 cooperators and 1 defector:
$\pi_D = \frac{2 \cdot T + 1 \cdot P}{3} = \frac{2 \cdot 5 + 1 \cdot 1}{3} = \frac{11}{3}$
(14)
Using the Fermi probability with $\beta = 1$ :
The probability that a cooperator imitates a defector (switching from C to D):
$\begin{align*} P(C \to D) &= \frac{1}{1 + e^{-\beta(\pi_D - \pi_C)}} \\ &= \frac{1}{1 + e^{-(11/3 - 1)}} \\ &= \frac{1}{1 + e^{-8/3}} \approx \frac{1}{1 + 0.0695} \approx 0.935 \end{align*}$
(15)
The probability that a defector imitates a cooperator (switching from D to C):
$\begin{align*} P(D \to C) &= \frac{1}{1 + e^{-\beta(\pi_C - \pi_D)}} \\ &= \frac{1}{1 + e^{-(1 - 11/3)}} \\ &= \frac{1}{1 + e^{8/3}} \approx \frac{1}{1 + 14.39} \approx 0.065 \end{align*}$
(16)
Note that $P(C \to D) + P(D \to C) = 1$ , as expected from the symmetry $P(i \to j) = 1 - P(j \to i)$ .
As $\beta \to 0$ : Both Fermi probabilities converge to $1/2$ . The exponential term $e^{-\beta \Delta\pi} \to 1$ regardless of the payoff difference $\Delta\pi$ , so $P(i \to j) \to 1/(1+1) = 1/2$ . Imitation becomes purely random, neutral drift.
As $\beta \to \infty$ : The higher-payoff individual is always imitated. Since $\pi_D > \pi_C$ , we get $P(C \to D) \to 1$ and $P(D \to C) \to 0$ . Defectors are always imitated and cooperators never are; the dynamics are deterministic and defection takes over.

import numpy as np

R, S, T, P_pd = 3, 0, 5, 1
N = 4
n_C, n_D = 2, 2

pi_C = (n_C - 1) * R + n_D * S
pi_C /= (N - 1)
pi_D = n_C * T + (n_D - 1) * P_pd
pi_D /= (N - 1)

print(f"pi_C = {pi_C}")
print(f"pi_D = {pi_D:.4f}")

beta = 1
P_C_to_D = 1 / (1 + np.exp(-beta * (pi_D - pi_C)))
P_D_to_C = 1 / (1 + np.exp(-beta * (pi_C - pi_D)))
print(f"P(C->D) = {P_C_to_D:.4f}")
print(f"P(D->C) = {P_D_to_C:.4f}")

pi_C = 1.0
pi_D = 3.6667
P(C->D) = 0.9350
P(D->C) = 0.0650

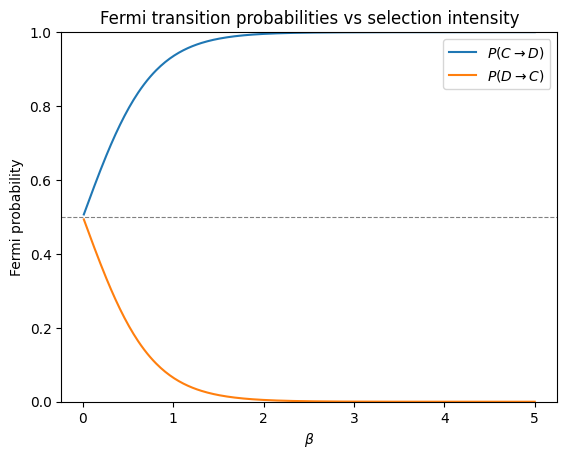

import matplotlib.pyplot as plt

beta_values = np.linspace(0.01, 5, 300)
P_C_to_D_vals = 1 / (1 + np.exp(-beta_values * (pi_D - pi_C)))
P_D_to_C_vals = 1 / (1 + np.exp(-beta_values * (pi_C - pi_D)))

plt.figure()
plt.plot(beta_values, P_C_to_D_vals, label=r"$P(C \to D)$")
plt.plot(beta_values, P_D_to_C_vals, label=r"$P(D \to C)$")
plt.axhline(0.5, color="gray", linestyle="--", linewidth=0.8)
plt.xlabel(r"$\beta$")
plt.ylabel("Fermi probability")
plt.title("Fermi transition probabilities vs selection intensity")
plt.legend()
plt.ylim(0, 1);

Solution to Exercise 2 #

The game is $M = \begin{pmatrix}2 & 0 \\ 0 & 1\end{pmatrix}$ with $N = 4$ and state $(v_1, v_2) = (2, 2)$ .

Each individual interacts with all $N-1 = 3$ others.

Payoffs at state $(2,2)$ :

For a type-1 individual (1 ally among 3 opponents):

\pi_1 = \frac{1 \cdot 2 + 2 \cdot 0}{3} = \frac{2}{3}

(17)

For a type-2 individual (2 opponents of type 1, 1 ally):

\pi_2 = \frac{2 \cdot 0 + 1 \cdot 1}{3} = \frac{1}{3}

(18)

Imitation dynamics with $\beta = 2$ .
For the number of type-1 individuals to increase by 1, a type-2 individual must be selected as $i$ , a type-1 individual must be selected as $j$ , and $i$ must adopt $j$ ’s strategy.
Probability of selecting a type-2 individual as $i$ and a type-1 individual as $j$ :
$\frac{v_2}{N} \cdot \frac{v_1}{N-1} = \frac{2}{4} \cdot \frac{2}{3} = \frac{1}{3}$
(19)
Fermi probability that the type-2 individual imitates the type-1 individual:
$\begin{align*} P(2 \to 1) &= \frac{1}{1 + e^{-\beta(\pi_1 - \pi_2)}} \\ &= \frac{1}{1 + e^{-2(2/3 - 1/3)}} \\ &= \frac{1}{1 + e^{-2/3}} \approx 0.661 \end{align*}$
(20)
Therefore the probability of increasing type-1 count by 1:
$P(\text{increase}) = \frac{1}{3} \times \frac{1}{1 + e^{-2/3}} \approx 0.220$
(21)
Moran process.
In the Moran process, fitness is proportional to payoff (using linear fitness $f_i = 1 + \delta \pi_i$ or simply $f_i = \pi_i$ with normalisation). Using proportional fitness $f_i = \pi_i$ :
$p_{2 \to 1} = \frac{v_1 \cdot \pi_1}{v_1 \pi_1 + v_2 \pi_2} \cdot \frac{v_2}{N-1}$
(22)
The probability that a type-1 is selected for reproduction and a type-2 for removal:
$\begin{align*} P(\text{increase}) &= \frac{v_1 \pi_1}{v_1 \pi_1 + v_2 \pi_2} \cdot \frac{v_2}{N} \\ &= \frac{2 \cdot (2/3)}{2 \cdot (2/3) + 2 \cdot (1/3)} \cdot \frac{2}{4} \\ &= \frac{4/3}{4/3 + 2/3} \cdot \frac{1}{2} \\ &= \frac{2}{3} \cdot \frac{1}{2} = \frac{1}{3} \end{align*}$
(23)
Wright-Fisher process (one generation, $f_i = e^{\beta \pi_i}$ with $\beta=2$ ).
Exponential fitnesses:
$f_1 = e^{2 \cdot 2/3} = e^{4/3} \approx 3.794 \qquad f_2 = e^{2 \cdot 1/3} = e^{2/3} \approx 1.948$
(24)
Sampling probability for type-1:
$\begin{align*} p_1 &= \frac{v_1 f_1}{v_1 f_1 + v_2 f_2} \\ &= \frac{2 e^{4/3}}{2 e^{4/3} + 2 e^{2/3}} \\ &= \frac{e^{4/3}}{e^{4/3} + e^{2/3}} \\ &= \frac{1}{1 + e^{-2/3}} \approx 0.661 \end{align*}$
(25)
The next generation $(v_1', v_2')$ follows Binomial $(4, p_1)$ . The probability of the next state being $(3, 1)$ is:
$\begin{align*} P(v_1' &= 3) = \binom{4}{3} p_1^3 (1-p_1)^1 \\ &= 4 \times (0.661)^3 \times (0.339) \approx 4 \times 0.289 \times 0.339 \approx 0.392 \end{align*}$
(26)
Comparison.
- Imitation dynamics: $P(\text{increase}) \approx 0.220$
- Moran process: $P(\text{increase}) = 1/3 \approx 0.333$
- Wright-Fisher (probability of state $(3,1)$ ): $\approx 0.392$
The Wright-Fisher process most strongly favours strategy 1 in this state, followed by the Moran process, then imitation dynamics. The difference arises because the Wright-Fisher process uses exponential fitness (amplifying payoff differences) and replaces the whole population at once, whereas imitation uses the Fermi rule with a moderate $\beta$ , and the Moran process uses linear (proportional) fitness.

import numpy as np
from math import comb

M = np.array([[2, 0], [0, 1]])
N = 4
v1, v2 = 2, 2
beta = 2

# Payoffs
pi1 = ((v1 - 1) * M[0, 0] + v2 * M[0, 1]) / (N - 1)
pi2 = (v1 * M[1, 0] + (v2 - 1) * M[1, 1]) / (N - 1)
print(f"pi_1 = {pi1:.4f}, pi_2 = {pi2:.4f}")

# 1. Imitation
P_2to1 = 1 / (1 + np.exp(-beta * (pi1 - pi2)))
P_imitation_increase = (v2 / N) * (v1 / (N - 1)) * P_2to1
print(f"Imitation P(increase) = {P_imitation_increase:.4f}")

# 2. Moran
total_fitness = v1 * pi1 + v2 * pi2
P_moran_increase = (v1 * pi1 / total_fitness) * (v2 / N)
print(f"Moran P(increase) = {P_moran_increase:.4f}")

# 3. Wright-Fisher
f1 = np.exp(beta * pi1)
f2 = np.exp(beta * pi2)
p1 = (v1 * f1) / (v1 * f1 + v2 * f2)
P_WF_3 = comb(N, 3) * p1**3 * (1 - p1)**1
print(f"Wright-Fisher p_1 = {p1:.4f}")
print(f"Wright-Fisher P(next state = (3,1)) = {P_WF_3:.4f}")

pi_1 = 0.6667, pi_2 = 0.3333
Imitation P(increase) = 0.2203
Moran P(increase) = 0.3333
Wright-Fisher p_1 = 0.6608
Wright-Fisher P(next state = (3,1)) = 0.3915

Solution to Exercise 3 #

The game is $M = \begin{pmatrix}3 & 0 \\ 0 & 2\end{pmatrix}$ with population shares $x_1$ and $x_2 = 1 - x_1$ .

The expected payoffs against the current population are:

\pi_1(x_1) = 3x_1 + 0 \cdot (1-x_1) = 3x_1

(27)

\pi_2(x_1) = 0 \cdot x_1 + 2(1-x_1) = 2(1-x_1)

(28)

Rest points of best-response dynamics.
From the definition of best-response dynamics:
$\dot{x}_1 = \mathbf{1}[\pi_1 = \max(\pi_1, \pi_2)] - x_1$
(29)
At a rest point $\dot{x}_1 = 0$ . Three cases arise:
- If $\pi_1 > \pi_2$ (i.e., $3x_1 > 2(1-x_1)$ , i.e., $x_1 > 2/5$ ): $\dot{x}_1 = 1 - x_1 = 0 \Rightarrow x_1 = 1$ .
- If $\pi_1 < \pi_2$ (i.e., $x_1 < 2/5$ ): $\dot{x}_1 = 0 - x_1 = 0 \Rightarrow x_1 = 0$ .
- If $\pi_1 = \pi_2$ (i.e., $x_1 = 2/5$ ): both strategies are best responses, so by the convention $\mathbf{1}[\pi_1 = \max] = 1/2$ the target share is $1/2$ , giving $\dot{x}_1 = 1/2 - 2/5 = 1/10 \neq 0$ .
So $x_1 = 2/5$ is not a rest point of the best-response dynamics (in continuous time with this convention).
The rest points are $x_1 \in \{0, 1\}$ .
Stability of each rest point.
- For $x_1 \in (0, 2/5)$ : $\pi_2 > \pi_1$ , so $\dot{x}_1 = 0 - x_1 = -x_1 < 0$ . The trajectory moves toward $x_1 = 0$ . Thus $x_1 = 0$ is stable.
- For $x_1 \in (2/5, 1)$ : $\pi_1 > \pi_2$ , so $\dot{x}_1 = 1 - x_1 > 0$ . The trajectory moves toward $x_1 = 1$ . Thus $x_1 = 1$ is stable.
- The threshold $x_1 = 2/5$ is an unstable boundary: perturbations away from $2/5$ are amplified, not corrected.
Both pure states are stable rest points. The basin of attraction of $x_1 = 0$ is $[0, 2/5)$ and of $x_1 = 1$ is $(2/5, 1]$ .
Comparison to Nash equilibria.
The Nash equilibria of $M = \begin{pmatrix}3 & 0 \\ 0 & 2\end{pmatrix}$ are:
- Pure Nash: $(1,0)$ and $(0,1)$ (both strict, as they are the best response to themselves in a coordination game).
- Mixed Nash: $(x_1^*, 1-x_1^*)$ with $x_1^* = 2/5$ , found by making the opponent indifferent: $3x_1 = 2(1-x_1) \Rightarrow x_1 = 2/5$ .
The two stable rest points $x_1 \in \{0, 1\}$ correspond exactly to the two strict Nash equilibria. The mixed Nash equilibrium at $x_1 = 2/5$ is not a rest point of the best-response dynamics in the continuous formulation (and is unstable under nearby perturbations). This is consistent with the general result that rest points of best-response dynamics are Nash equilibria, and strict Nash equilibria are always stable rest points.

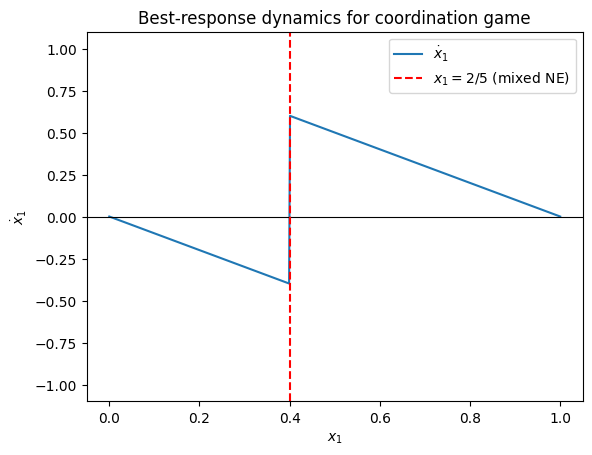

import numpy as np
import matplotlib.pyplot as plt

M = np.array([[3, 0], [0, 2]])
x1_values = np.linspace(0, 1, 500)

pi1 = M[0, 0] * x1_values + M[0, 1] * (1 - x1_values)
pi2 = M[1, 0] * x1_values + M[1, 1] * (1 - x1_values)

# Best-response dynamics: dx1/dt = BR(x) - x1
# BR = 1 if pi1 > pi2, 0 if pi1 < pi2, 1/2 if equal
BR = np.where(pi1 > pi2, 1.0, np.where(pi1 < pi2, 0.0, 0.5))
dx1_dt = BR - x1_values

plt.figure()
plt.plot(x1_values, dx1_dt, label=r"$\dot{x}_1$")
plt.axhline(0, color="black", linewidth=0.8)
plt.axvline(2/5, color="red", linestyle="--", label=r"$x_1=2/5$ (mixed NE)")
plt.xlabel("$x_1$")
plt.ylabel(r"$\dot{x}_1$")
plt.title("Best-response dynamics for coordination game")
plt.legend()
plt.ylim(-1.1, 1.1);

Solution to Exercise 4 #

The Stag Hunt game is $M = \begin{pmatrix}4 & 0 \\ 1 & 2\end{pmatrix}$ with $x_1$ denoting the share of the population playing strategy 1 (Stag).

The expected payoffs are:

\pi_1(x_1) = 4x_1 + 0 \cdot (1-x_1) = 4x_1

(30)

\pi_2(x_1) = 1 \cdot x_1 + 2(1-x_1) = 2 - x_1

(31)

Replicator dynamics from $x_1 = 0.4$ .
The average fitness is:
$\begin{align*} \bar{\pi} &= x_1 \pi_1 + (1-x_1)\pi_2 = x_1 \cdot 4x_1 + (1-x_1)(2-x_1) \\ &= 4x_1^2 + 2 - 3x_1 + x_1^2 = 5x_1^2 - 3x_1 + 2 \end{align*}$
(32)
The replicator equation:
$\begin{align*} \dot{x}_1 &= x_1(\pi_1 - \bar{\pi}) = x_1(4x_1 - (5x_1^2 - 3x_1 + 2)) \\ &= x_1(-5x_1^2 + 7x_1 - 2) \\ &= -x_1(5x_1 - 2)(x_1 - 1) \end{align*}$
(33)
The interior fixed point where $\pi_1 = \pi_2$ :
$4x_1 = 2 - x_1 \Rightarrow x_1^* = \frac{2}{5} = 0.4$
(34)
At $x_1 = 0.4$ exactly, we are at the interior fixed point $x_1^* = 2/5$ . The stability at $x_1^*$ determines where nearby trajectories go.
Evaluate the derivative of $\dot{x}_1$ at $x_1^*$ : for $x_1$ slightly above $2/5$ (say $x_1 = 0.41$ ):
$\pi_1(0.41) = 4(0.41) = 1.64 > \pi_2(0.41) = 2 - 0.41 = 1.59$
(35)
So $\dot{x}_1 > 0$ for $x_1 > 2/5$ : the trajectory moves toward $x_1 = 1$ .
For $x_1$ slightly below $2/5$ (say $x_1 = 0.39$ ):
$\pi_1(0.39) = 1.56 < \pi_2(0.39) = 1.61$
(36)
So $\dot{x}_1 < 0$ for $x_1 < 2/5$ : the trajectory moves toward $x_1 = 0$ .
Since the initial condition $x_1 = 0.4 = x_1^*$ is exactly the unstable fixed point, the system is in a degenerate case. Any infinitesimal perturbation above $2/5$ leads to convergence to $x_1 = 1$ (payoff-dominant, Stag equilibrium), and any perturbation below $2/5$ leads to $x_1 = 0$ (risk-dominant, Hare equilibrium).
Starting from $x_1 = 0.4$ exactly, the system remains at this unstable equilibrium in exact arithmetic. In practice, numerical integration will send it to one of the two pure states depending on rounding. The dynamics are exquisitely sensitive at this threshold; this is the defining feature of the mixed Nash equilibrium being unstable under replicator dynamics.
Best-response dynamics: basins of attraction.
Under best-response dynamics, the best response switches at $\pi_1 = \pi_2$ , i.e., at $x_1^* = 2/5$ .
- For $x_1 > 2/5$ : $\pi_1 > \pi_2$ , so the best response is strategy 1. $\dot{x}_1 = 1 - x_1 > 0$ . Basin of attraction of $(1, 0)$ : $(2/5, 1]$ .
- For $x_1 < 2/5$ : $\pi_2 > \pi_1$ , so best response is strategy 2. $\dot{x}_1 = 0 - x_1 = -x_1 < 0$ . Basin of attraction of $(0, 1)$ : $[0, 2/5)$ .
The basin of the payoff-dominant equilibrium $(1,0)$ is $(2/5, 1]$ . The basin of the risk-dominant equilibrium $(0,1)$ is $[0, 2/5)$ .
Note: the risk-dominant equilibrium $(0,1)$ has the larger basin under best-response dynamics (since $2/5 < 1/2$ ). This is in fact a general result: best-response dynamics (and many learning dynamics) favour the risk-dominant equilibrium when the mixed Nash equilibrium lies below $1/2$ .
Why the two dynamics can select different equilibria.
Best-response dynamics and replicator dynamics both have the same rest points (Nash equilibria) and the same stability classification at the pure states. However, they can differ in their transient behaviour and selected equilibrium in two key ways:
- Speed of convergence: Replicator dynamics amplifies payoff differences gradually (proportional to current frequency $x_i$ and excess payoff), while best-response dynamics switches immediately and completely to the best strategy. Near the interior fixed point, the two dynamics can therefore traverse different paths in state space.
- Selection at the boundary: In games where the interior equilibrium coincides with a risk-dominant threshold ( $x^* \neq 1/2$ ), the basin of attraction under replicator dynamics depends on the cubic form of the replicator equation, while under best-response dynamics the basin is determined purely by $x^*$ as a linear threshold. For this game both agree (the unstable fixed point is at $x^* = 2/5$ for both), but in more complex multi-strategy games the basins can genuinely differ.
- Stochastic finite-population versions: Moran-process-like stochastic analogues of these dynamics can select different equilibria because the transition probabilities depend on the microscopic update rule, not just the mean-field dynamics.

import numpy as np
import matplotlib.pyplot as plt
import sympy as sym

x_1 = sym.Symbol("x_1")
M_sym = sym.Matrix([[4, 0], [1, 2]])

pi1 = 4 * x_1
pi2 = 2 - x_1
phi = x_1 * pi1 + (1 - x_1) * pi2
x1_dot = x_1 * (pi1 - phi)
x1_dot_simplified = sym.simplify(x1_dot)
print("Replicator equation:", x1_dot_simplified)
fixed_points = sym.solveset(x1_dot_simplified, x_1)
print("Fixed points:", fixed_points)

Replicator equation: x_1*(-5*x_1**2 + 7*x_1 - 2)
Fixed points: {0, 2/5, 1}

x1_values = np.linspace(0, 1, 500)
pi1_num = 4 * x1_values
pi2_num = 2 - x1_values
phi_num = x1_values * pi1_num + (1 - x1_values) * pi2_num
x1_dot_num = x1_values * (pi1_num - phi_num)

# Best-response dynamics
BR = np.where(pi1_num > pi2_num, 1.0, np.where(pi1_num < pi2_num, 0.0, 0.5))
br_dot = BR - x1_values

plt.figure(figsize=(8, 5))
plt.plot(x1_values, x1_dot_num, label="Replicator $\\dot{x}_1$")
plt.plot(x1_values, br_dot, label="Best-response $\\dot{x}_1$", linestyle="--")
plt.axhline(0, color="black", linewidth=0.8)
plt.axvline(2/5, color="red", linestyle=":", label=r"$x_1^*=2/5$")
plt.xlabel("$x_1$")
plt.ylabel(r"$\dot{x}_1$")
plt.title("Replicator vs best-response dynamics: Stag Hunt")
plt.legend()
plt.ylim(-0.5, 0.5);

References¶

Gilboa, I., & Matsui, A. (1991). Social stability and equilibrium. Econometrica, 59(3), 859–867.
Traulsen, A., Claussen, J. C., & Hauert, C. (2005). Coevolutionary dynamics: from finite to infinite populations. Physical Review Letters, 95(23), 238701.
Hofbauer, J., & Sigmund, K. (1998). Evolutionary Games and Population Dynamics. Cambridge University Press.
Traulsen, A., Nowak, M. A., & Pacheco, J. M. (2006). Pairwise comparison and selection temperature in evolutionary game dynamics. Journal of Theoretical Biology, 246(3), 522–529.
Couto, M. C., Giaimo, S., & Hilbe, C. (2022). Introspection dynamics: a simple model of counterfactual learning in asymmetric games. New Journal of Physics, 24(6), 063033.
Fisher, R. A. (1930). The Genetical Theory of Natural Selection. Clarendon Press.
Wright, S. (1931). Evolution in Mendelian populations. Genetics, 16(2), 97–159.
